MOSFET with Bluetooth Leviathan - V2 optical to stock (without trigger) - JeffTron

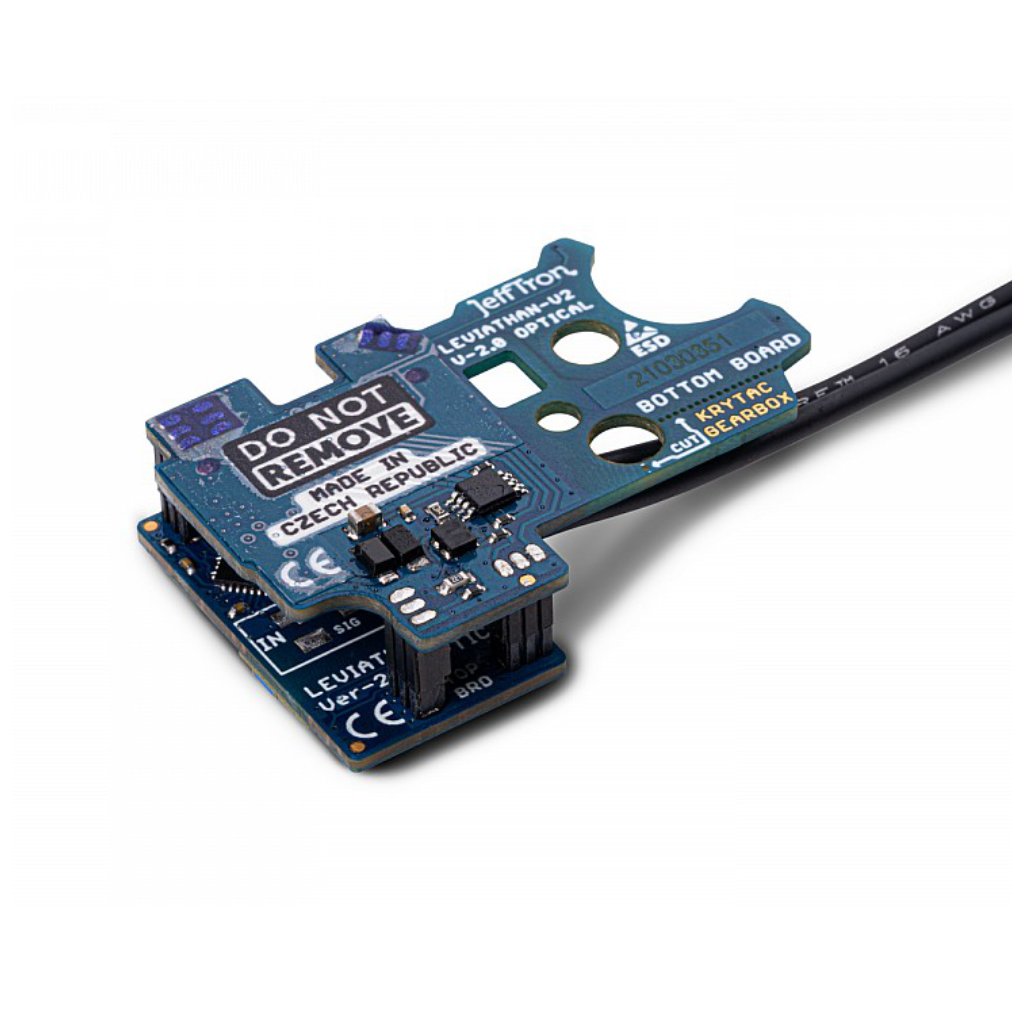

Leviathan - V2 optical is one of the most advanced control units on the market. It combines optical and microswitch sensors for better control and durability. The unit has an integrated Bluetooth chip for quick setup using a smartphone (iOS or Android). Leviathan - V2 optical brings endless possibilities for your weapon!

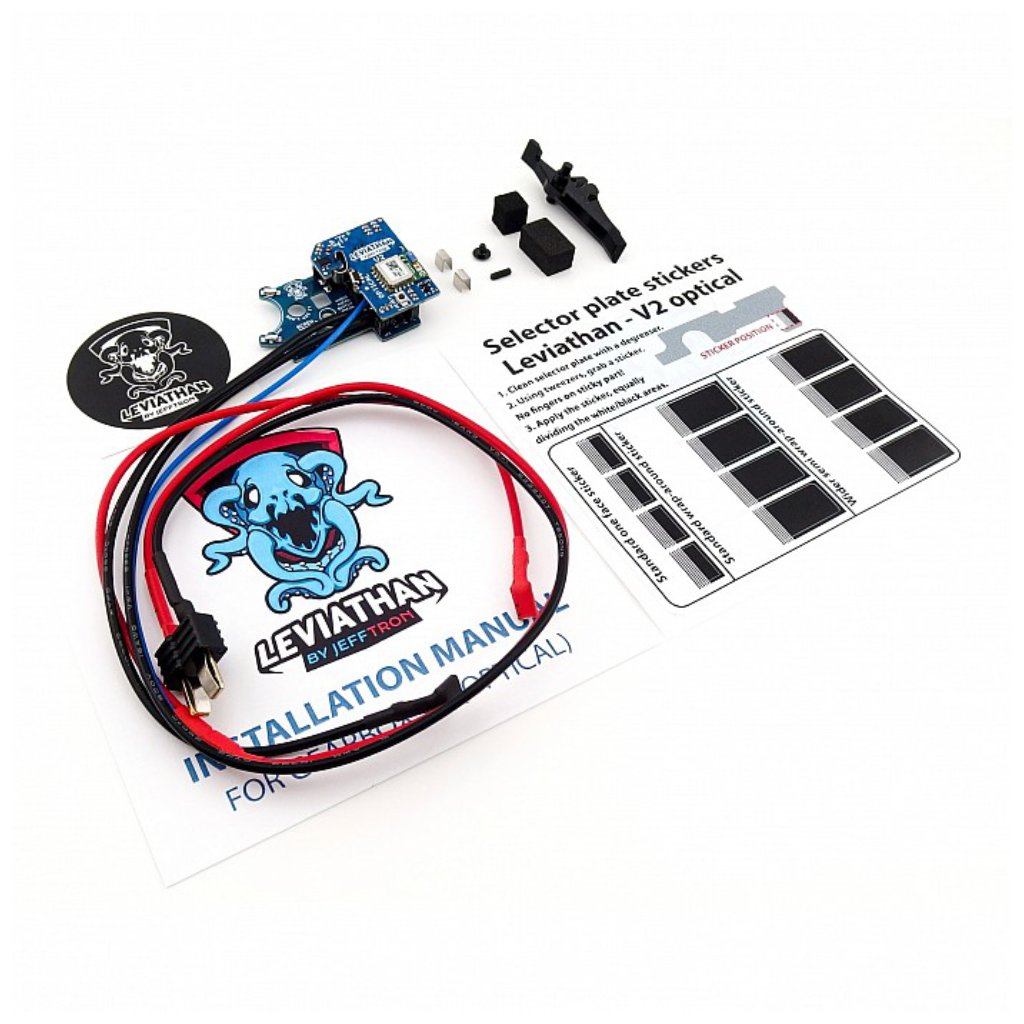

Ready-made wiring with DeanT connector - no soldering required.

Variant with wiring routed into the stock.

MAIN FUNCTIONS

• Optical sensors are used to detect the shooting mode and shot cycle.
• The trigger switch has a travel of only 0.13 mm to achieve perfect hair trigger mode
• Unique Real Force Trigger System (RFTS) with integrated spring simulates trigger resistance like in a real firearm. Adds secondary resistance with trigger reset after firing. RFTS was designed
• by a professional gunsmith for a more realistic shooting feel
• Adds new shooting modes independently for each switch position (SEMI - BURST - AUTO)
• Adjustable burst fire (range 2 - 20 rounds)
• Maintains empty magazine detection like the original weapon
• Reduction of rate of fire by up to 40% with a pause between shots. Thanks to this, the shot has a quick response to the trigger pull, like real guns
• Adjustable strength of active motor braking with the option to turn it off
• Piston pre-cocking function for immediate shot in SEMI shooting mode (can only be used with the reverse gear catch included in the package)
• Delayed firing function, where you cannot fire again for a certain period. It is for simulating recoil or reloading (range 0.1 - 4.0 s)
• Electronic safety adjusts the sensitivity of current protection
• Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
• The virtual magazine simulates low-capacity magazines, when it reaches 0, the weapon stops firing. A warning can be set after each shot, when the virtual magazine will be almost empty
• On the board there is an input port with functions: 3-round burst, external trigger, AUG trigger, empty magazine detection, virtual magazine reload, etc. And output pads are used for illuminated hop-up chambers,
• powering electric magazines, flashlights, etc.
• The screen with shooting statistics, motor current draw, and mosfet temperature allows for fine-tuning of the gearbox assembly
• Display of the current rate of fire of the guns
• The application displays the current battery voltage. A colored bar indicates its charge status
• Saving parameters to profiles for quick loading
• Update updates remove bugs and add new features for the device
• Error log shows recorded error history
