MOSFET - V3 above gearbox - JeffTron

Professionally designed mOSFET intended for airsoft electric guns.
The device increases the cadence of guns and battery life compared to the original wiring in the weapon.

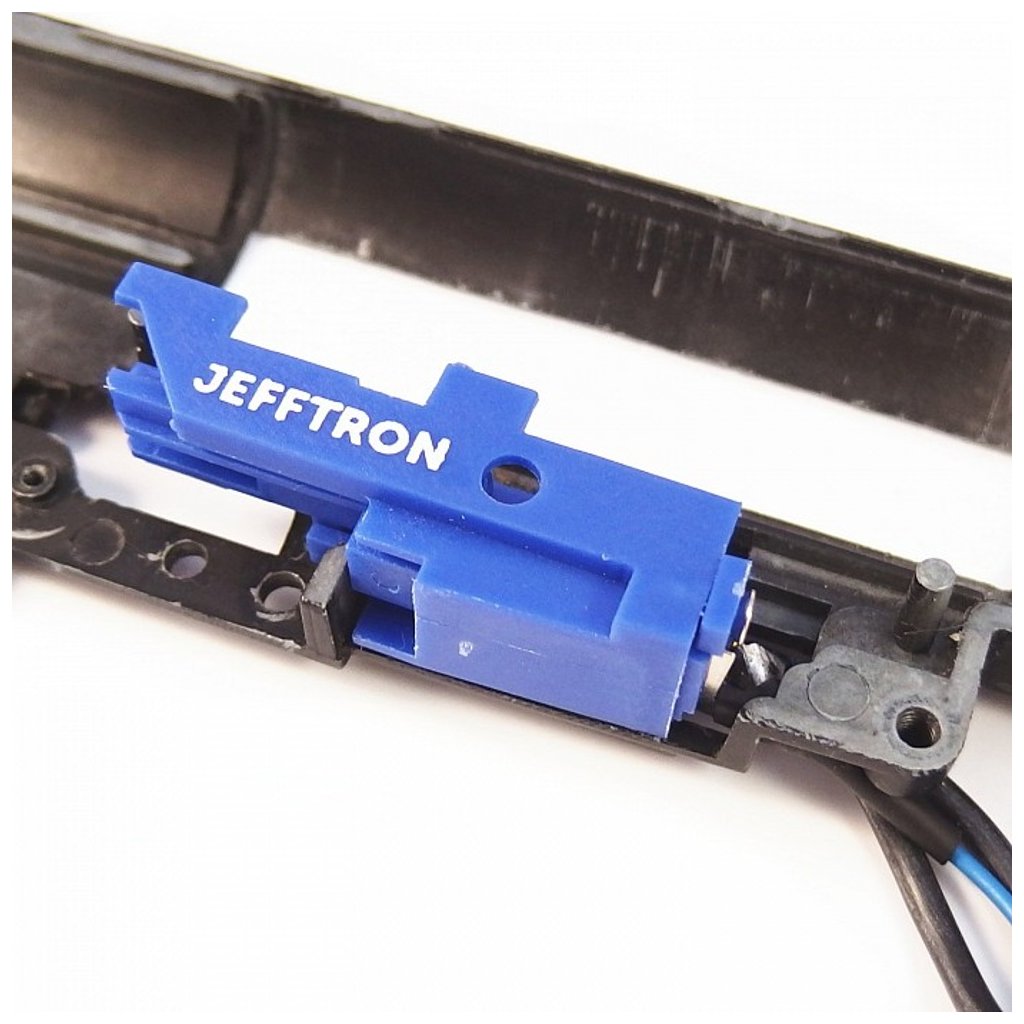

Fully integrated device inside V3 gearbox instead of original trigger contacts according to Tokio Marui standard.
Ready-made wiring harness adapted for battery above the gearbox with DeanT connector - no soldering required.

SPECIFICATIONS:
- Built-in mOSFET on trigger contacts from SHS
- Simple installation inside V3 gearbox

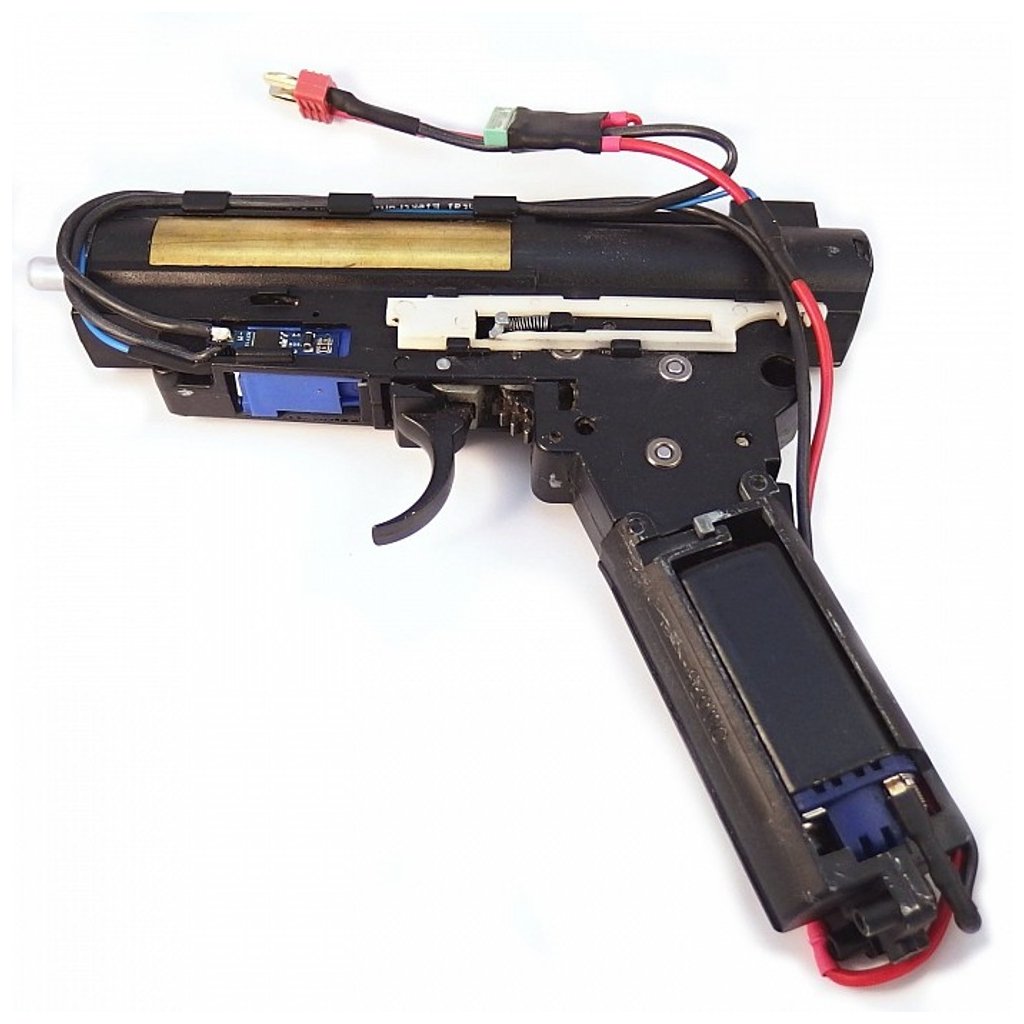

- Complete wiring allows for quick and easy installation into the gun, it is designed for all types of AK guns with the battery placed above the gearbox
- Power wires with thin and rigid MPPE insulation with a cross-section of 1.5 mm2 (AWG16), blue wire with a cross-section of 0.34 mm2 (AWG22) with MPPE insulation
- The electronics board is coated with varnish that protects against water ingress into the device
- If you want to use your own wires, choose the variant without wiring
- If you need a different type of wiring, choose the variant with universal wiring
- Designed for springs up to m160 (corresponds to a current of 75A for single shots or 25A for burst shooting for a maximum of 30s). For higher loads, choose MOSFET II (placed outside the gearbox)
- Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, LiPo 7.4 - 14.8V)
- Trigger contacts do not burn
- No current is drawn in the idle state
- Due to the operating principle of the AEG guns mechanism, the piston stops in a random position in AUTO mode
For the correct function of this device, the gearbox must have a functional cut-off lever, selector plate, anti-reverse latch, trigger, and trigger stop (secured), as in a standard gearbox.

PACKAGE CONTENTS:

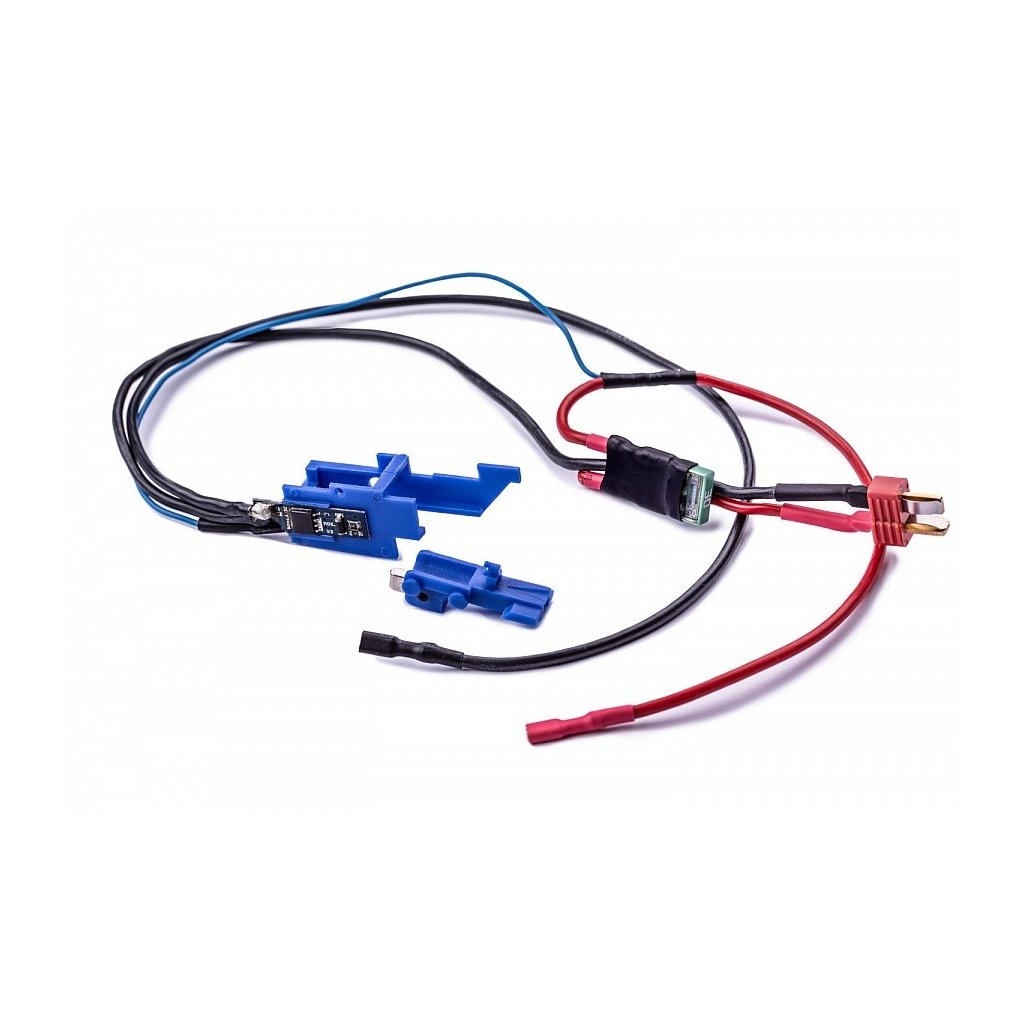

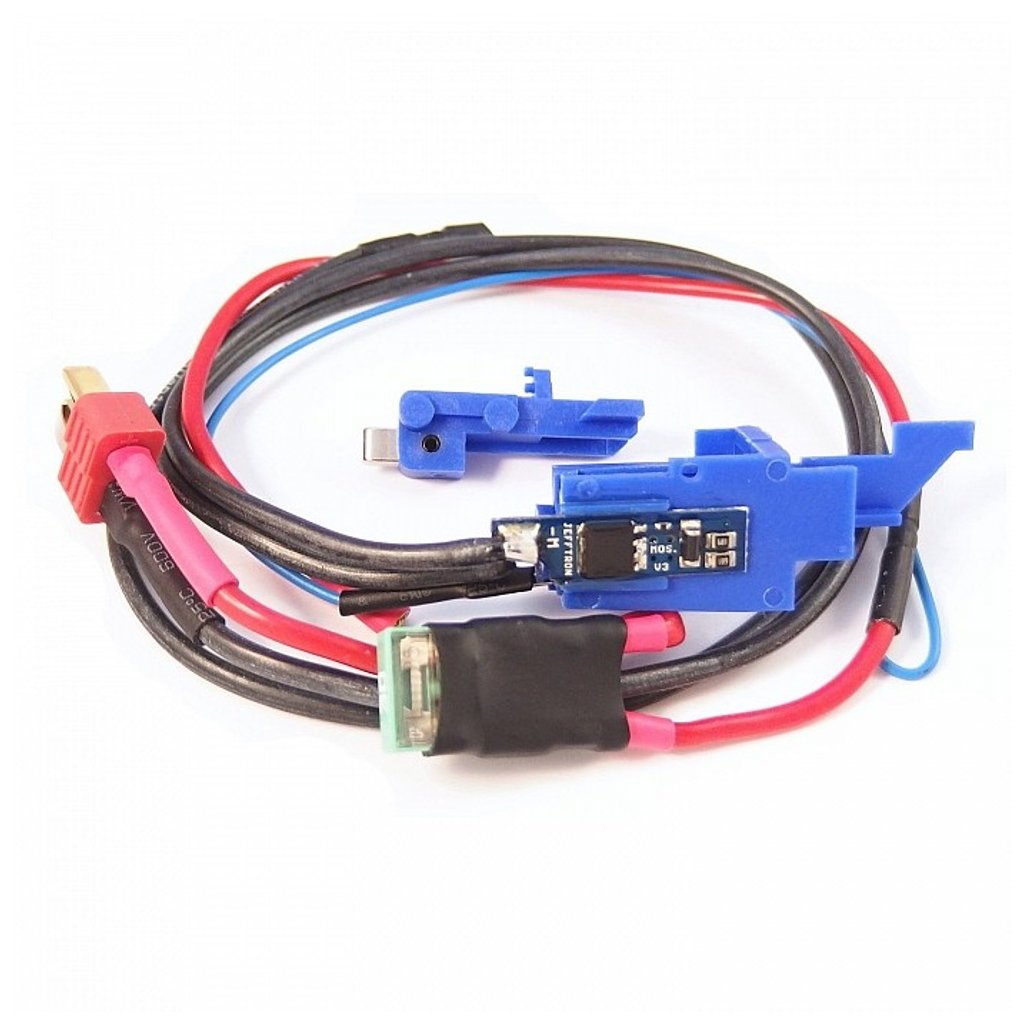

- mOSFET on the switch contacts with powered wires, DeanT connector, 30A mini blade safety and with faston sleeves on the wires
- Trigger shuttle
- Installation manual

WARNING: Installation of this device requires a professional who can solder and disassemble an AEG weapon. Never use a transformer welding machine!
Despite all efforts, 100% compatibility of the device with all version 3 gearboxes cannot be guaranteed.
For most commonly available and widespread brands, the MOSFET - V3 can be installed without major modification.
