MOSFET II with universal wiring - JeffTron

Professionally designed mOSFET with wiring harness for electric airsoft guns.
The device increases the cadence of guns and battery life compared to the original wiring in the weapon.

SPECIFICATIONS:
- Very small dimensions of the device, fits almost anywhere
- Pre-prepared wiring allows for faster and easier installation into the gun, it is long enough for all types of guns. Simply shorten the wires to the required length and power the connectors (included in the package)

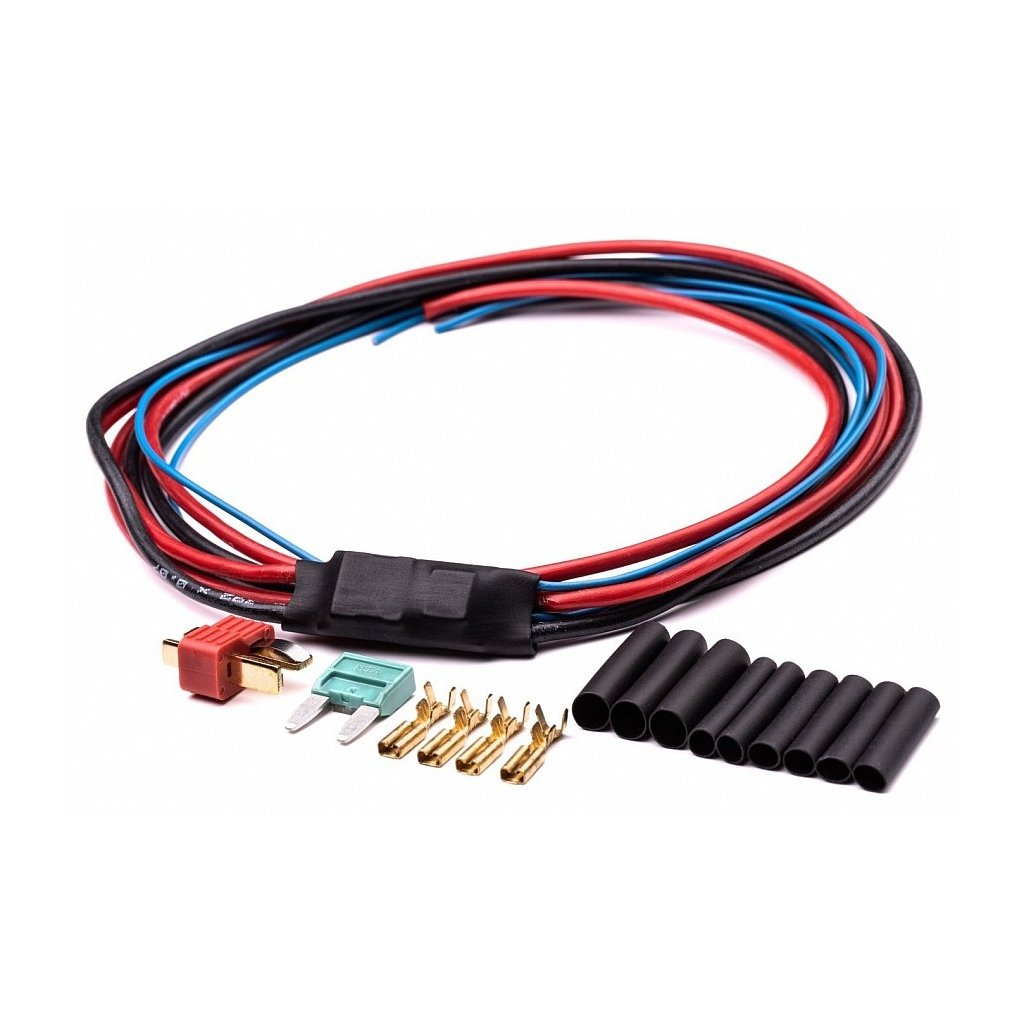

- 2 black wires with rigid MPPE insulation with a cross-section of 1.5 mm2 (AWG16), length 500 mm, and a blue wire with a cross-section of 0.34 mm2 (AWG22), length 1000 mm, are soldered to the device for connection anywhere to the red wire. Also included in the package is a 1000 mm long red wire with MPPE insulation with a cross-section of 1.5 mm2 (AWG16)
- Coated in lacquer, which protects against water ingress into the device
- If you want to use your own wires, choose the variant without wiring
- Designed for springs up to m160 (corresponds to a current of 75A for single shots or 25A for burst shooting for a maximum of 30s). For higher loads, choose MOSFET II
- Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, LiPo 7.4 - 14.8V)
- 5-wire connection
- The positive wire is not connected to the device

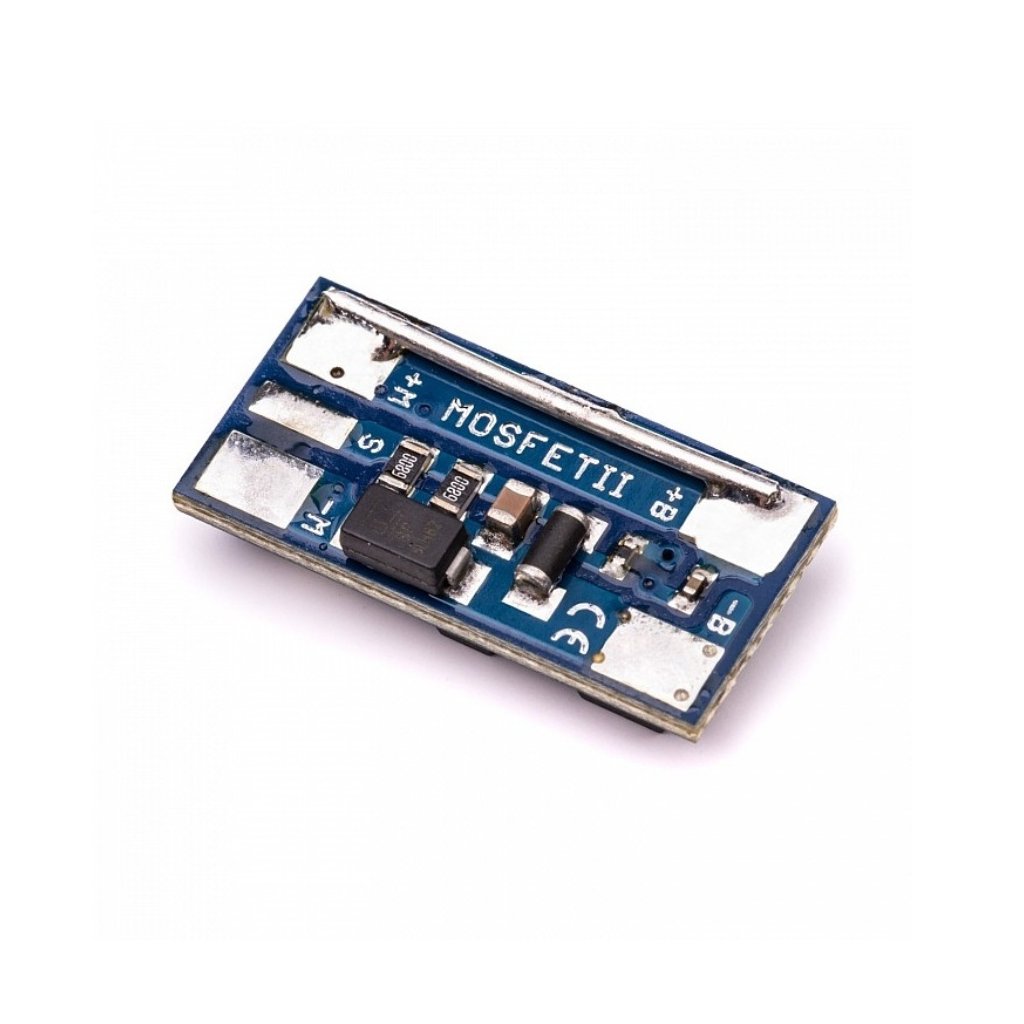

- Device size 15x7x5mm
- Trigger contacts do not burn
- No current is drawn in the idle state
- Due to the operating principle of the AEG guns mechanism, the piston stops in a random position in AUTO mode
For the correct function of this device, the gearbox must have a functional cut-off lever, selector plate, anti-reverse latch, trigger, and trigger stop (secured), as in a standard gearbox.

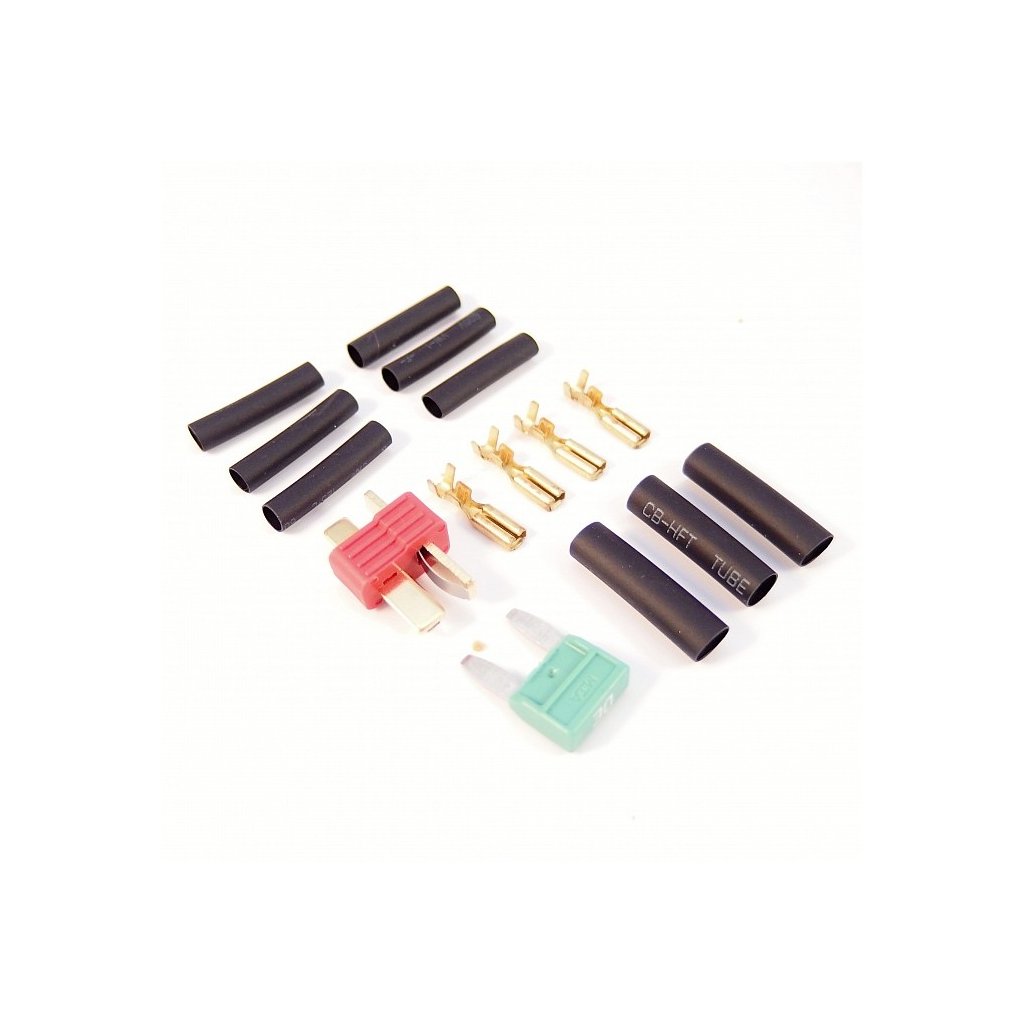

PACKAGE CONTENTS:
- device with powered wiring
- DeanT male connector
- 30A mini blade safety
- 4x faston receptacle
- 6x black sleeve 3.2mm length 20mm
- 3x black sleeve 4.8mm length 20mm
- Installation manual

WARNING: Installation of this device requires a professional who can solder and disassemble an AEG weapon. Never use a transformer welding machine!
