Microprocessor speed loader with balancer IMAX B6 AC 6A 80W including power supply - IMAX

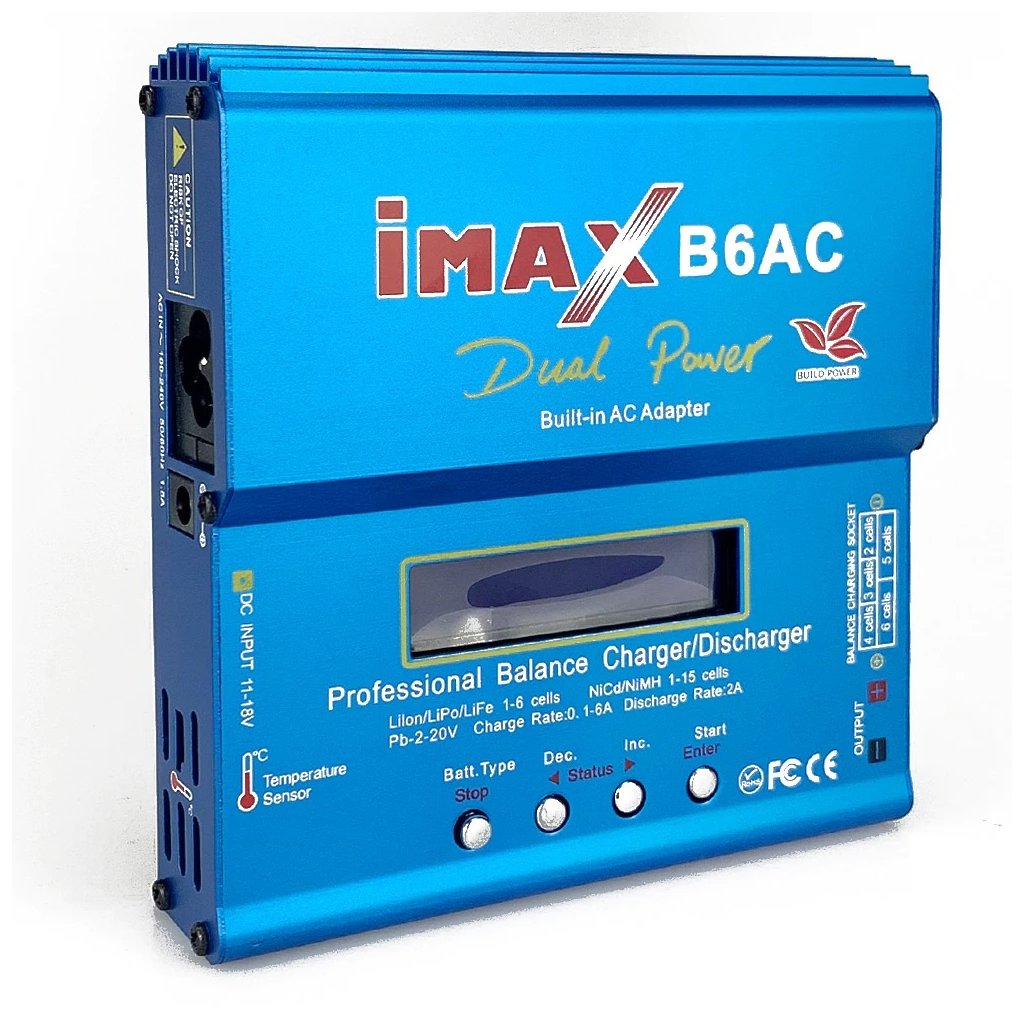

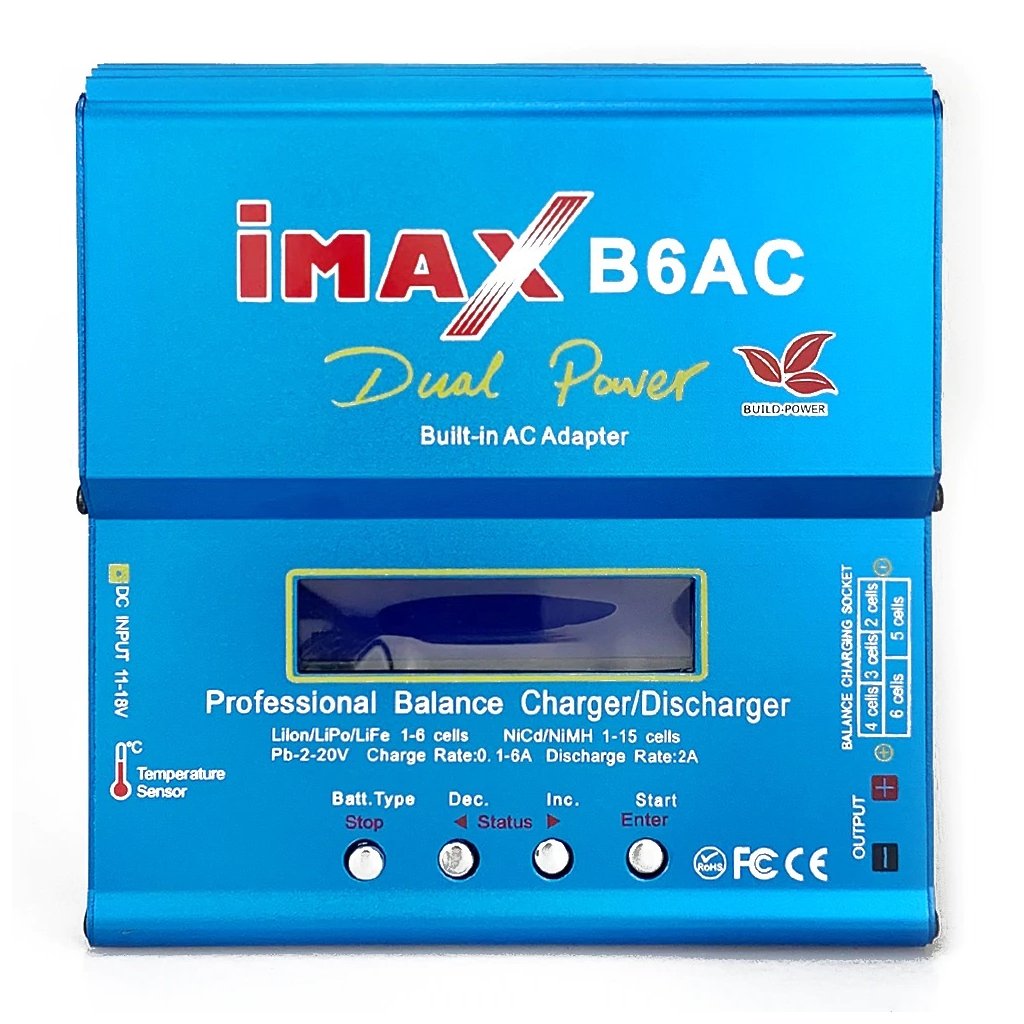

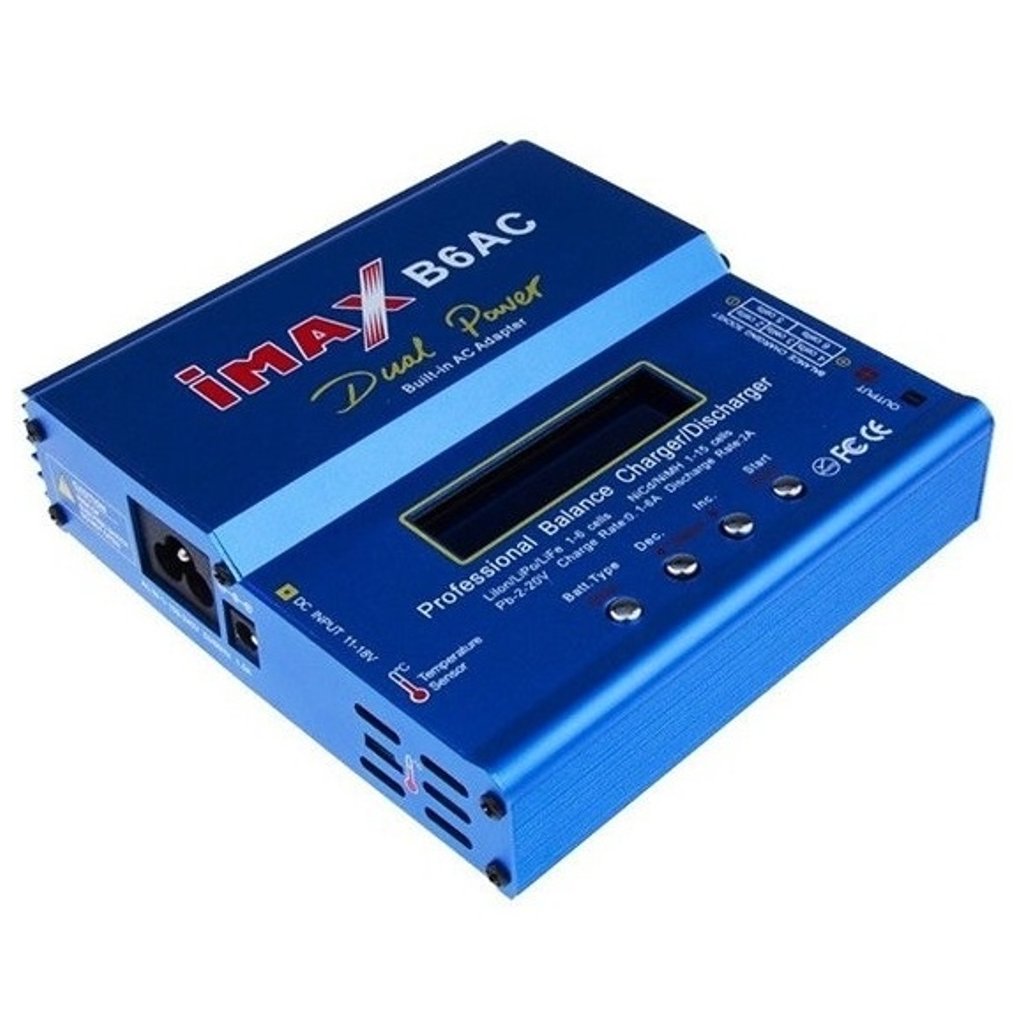

Imax B6 AC Charger/Discharger with Balancer

• microprocessor controlled
• built-in switching power supply
• automatic cell series balancing
• backlit LCD display
• memory for storing 5 custom charging/discharging programs
• input voltage undervoltage protection (e.g., against damage to car battery as a source)
• temperature protection of the charged pack
• adjustable charging time limit
• easy and intuitive operation

Input voltage: 100 - 240V AC / 50 - 60 Hz / 1.5A max
or 11 - 18V DC / 5A
Charging power: 80W max
Discharging power: 10W max
Charging current: 0.1 - 6A
Discharge current: 0.1 - 2A
Weight: 476g
Dimensions: 145 x 135 x 35 mm

Maximum number of cells in series:

• Li-Ion / Li-Pol / Li-Fe: 1 to 6 cells
• NiCd / NiMH: 1 to 15 cells
• Pb: 1 to 10 cells (2-20V)

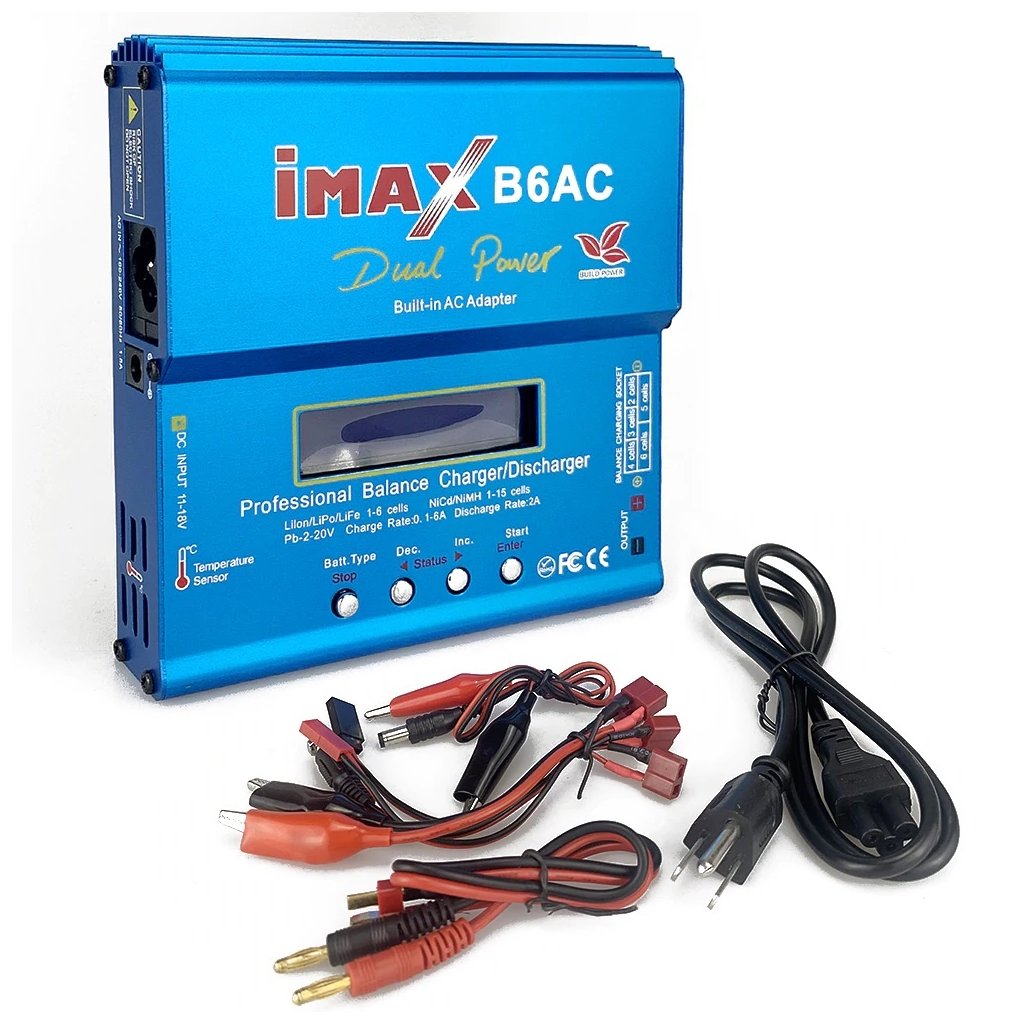

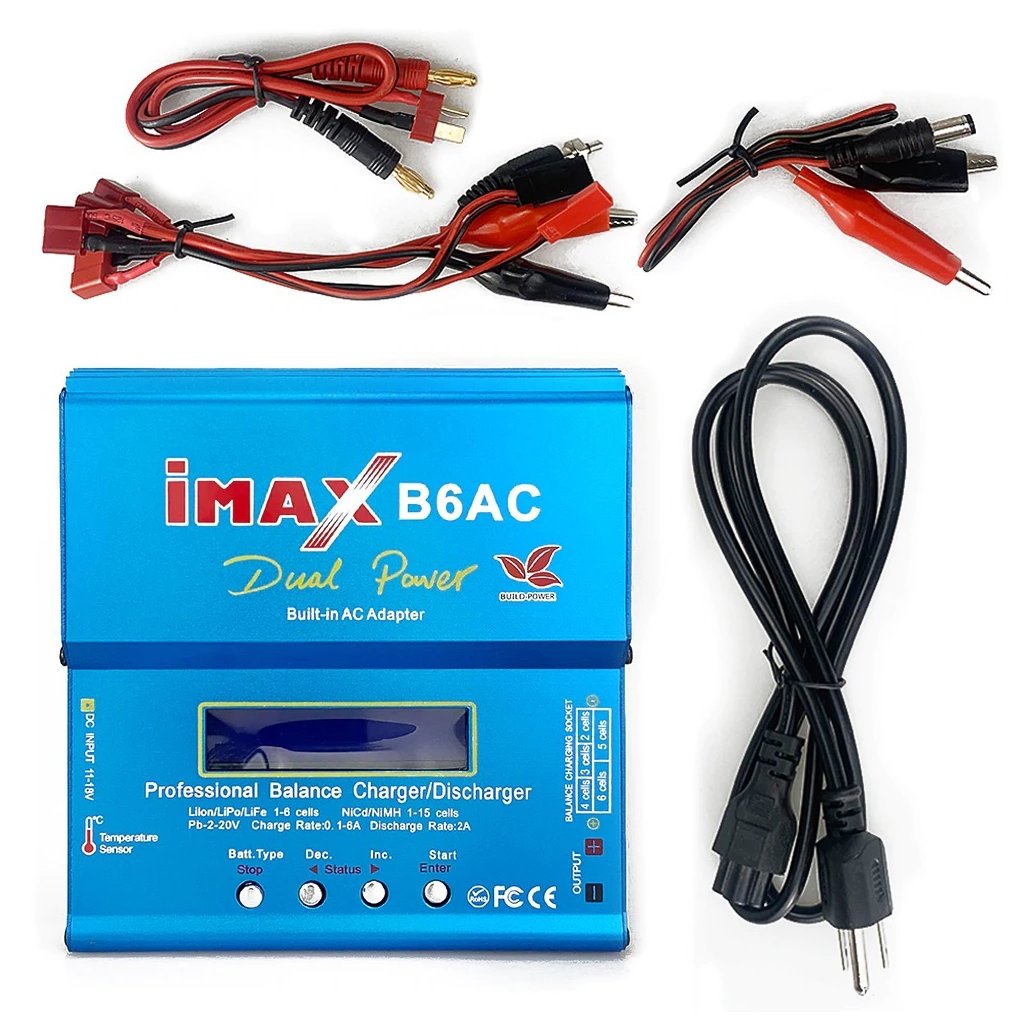

Package contents:

• charger
• AC power cable 230V AC to socket
• DC power cable with crocodile clips
• 4 output (charging) cables: crocodile clips, 2.5mm jack and 2x 2-pin
