Micro active brake II with wiring - JeffTron

Professionally designed mOSFET with active motor braking for electric airsoft guns.
The piston is not partially cocked during semi-firing, spring does not fatigue, internal parts are not stressed, and nozzle mostly locks the chamber.
For high-rate weapons, it solves the problem of multiple shots in shooting mode on semi.
The device increases the cadence of guns and battery life compared to the original wiring in the weapon.

SPECIFICATIONS:

• Very small device dimensions, fits almost anywhere

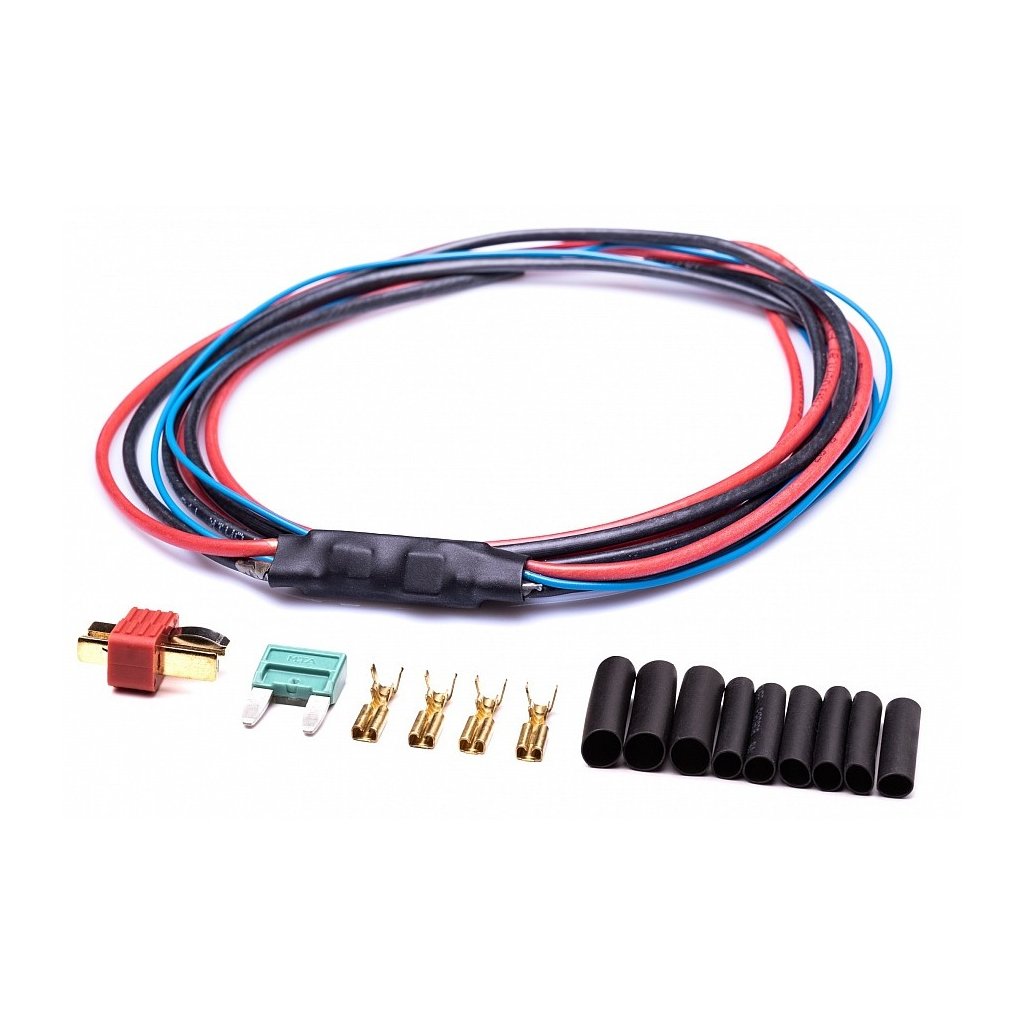

• Pre-prepared cabling allows for faster and easier installation up to guns, it is long enough for all types of weapons. Simply shorten the wires to the required length and power the connectors (included in the package)
• The device is powered by 4 wires with solid MPPE insulation with a cross-section of 1.5 mm2 (AWG16) and two blue wires with a cross-section of 0.34 mm2 (AWG22) with a length of 500mm.
• Coated in lacquer that protects against water ingress into the device
• If you want to use your own wires, choose the option without wiring
• Intended for springs up to m160 (corresponds to a current of 75A for single shots or 25A for burst shooting for a maximum of 30s)
• Intended for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, LiPo 7.4 - 14.8V)
• After the contacts open, the excess energy of the motor is used to stop it. The braking effect is strongest with a load motor with neodymium magnets.
• 6-wire connection
• Device size 27x10x7mm
• Trigger contacts do not burn out
• No current is drawn in idle state
• Due to the operating principle of the AEG weapon guns mechanism, the piston stops in a random position in AUTO mode
• For the correct function of this device, it is necessary to have a functional cutoff lever, selector plate cam, anti-reverse latch, trigger, and trigger stop (secured) in the gearbox, as in a standard gearbox
