Cylinder head for gearbox v. II (Classic) - AirsoftParts
Cylinder head for gearbox v. II (Classic) - AirsoftParts Precision cylinder head designed for gearbox version II, engineered to improve air seal and reliability during AEG operation.
20 000 Ks produktů skladem
od 300 různých výrobců z celého světa
PARAMETERS
- Designation: HV-CLAS
- Dimension: Standard
- Material: EN AW 6012 T6
- Maximum recommended spring: M150
- Seal: 2x sealing O-ring
- Surface treatment: Chemical nickel plating
- Impact surface: Shaped ring
- Hardness of impact surface: 70 ShA
- Weight: 11.3 g
- Compatible with gearbox: v.2, v.3
Manufacturer: Airsoft parts - Made in Czech Republic

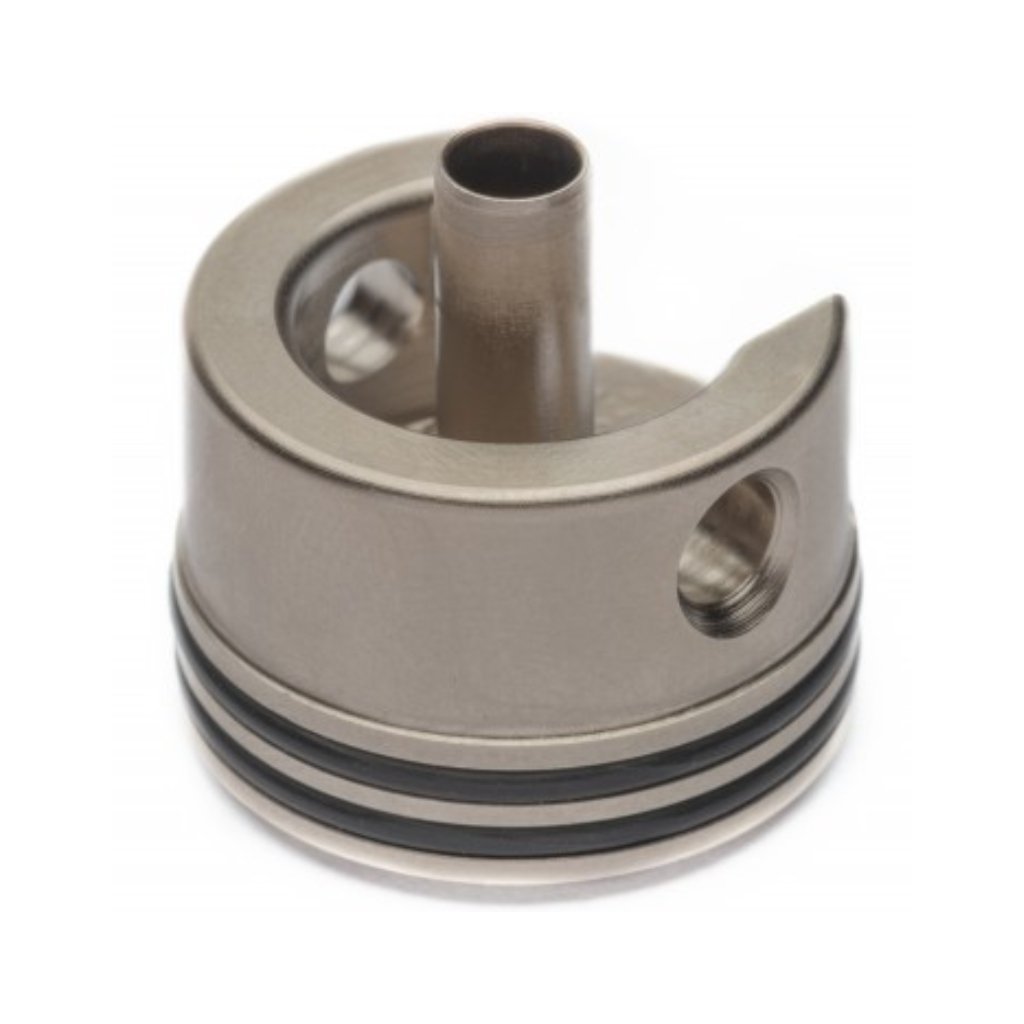

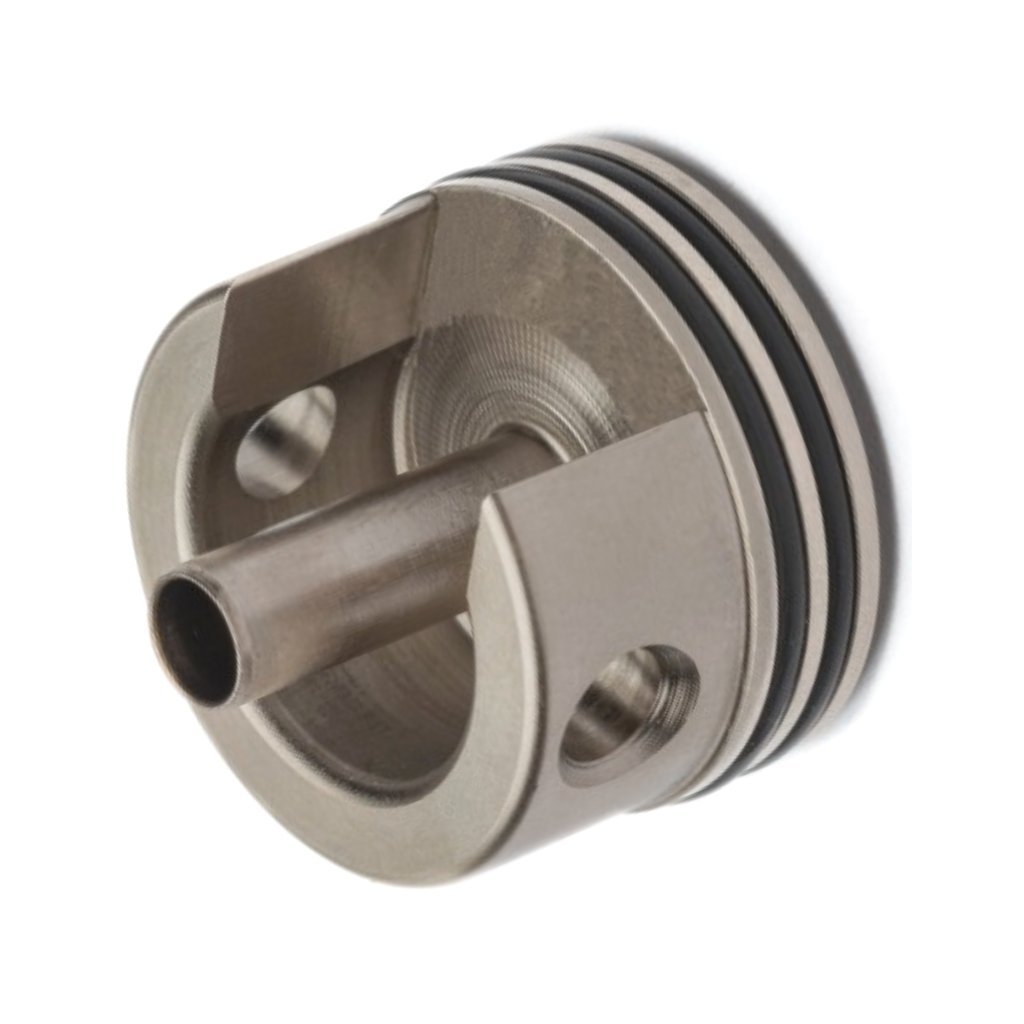

The cylinder head is made of duralumin EN AW 6012. On a CNC machining center. To seal the space between the cylinder head and the cylinder, 2 sealing rings are used. The first sealing ring has a slightly smaller diameter for easier fitting, and the second ring is larger for a perfect seal.
Surface treatment:
A thin layer of nickel is chemically applied to the surface of this cylinder head, which significantly increases the lifespan and slipperiness of the surface. Basic information:
- Hardness after plating 660-850 HV (58-63 HRc)
- Excellent corrosion resistance
- High abrasion resistance
- Inherent surface lubricity
- Glossy appearance
- Uniform layer
| Category: | Heads cylinder |
|---|---|
| Weight: | 0.014 kg |
| EAN: | 8592870016134 |
| Materiál: | dural (CNC obrábění) |
| Pro typ mechaboxu: | Univerzální |
| Průměr: | Standart |
