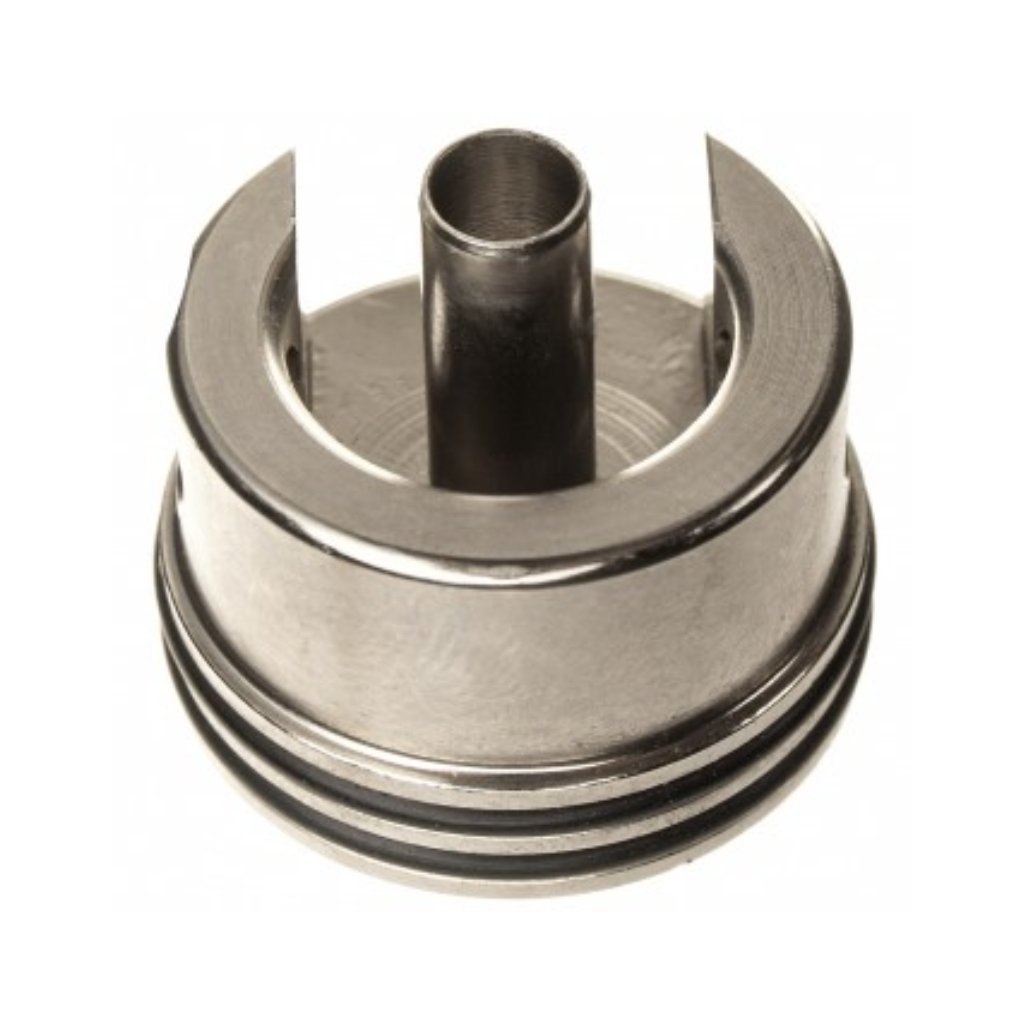

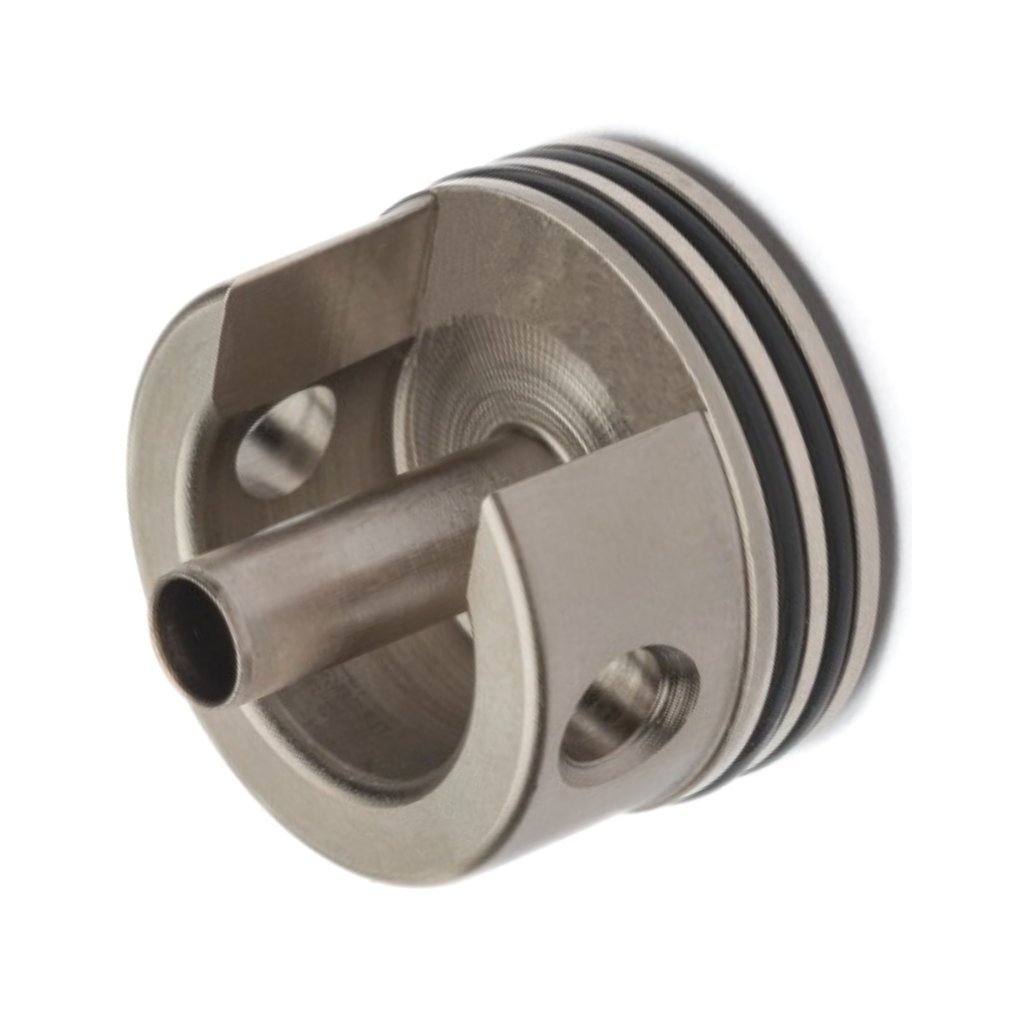

Cylinder head Classic 2nd generation NBU - AirsoftParts
Cylinder head Classic 2nd Generation NBU - AirsoftParts upgraded cylinder head for AEG with optimized seal and precise machining, designed to increase reliability and consistency during tuning.
PARAMETERS
- Designation: HV-CLASS-NBU
- Size: NBU
- Material: EN AW 6012 T6
- Maximum recommended spring: M150
- Seal: 2x sealing O-ring
- Surface treatment: Chemical nickel plating
- Impact surface: Shaped ring
- Hardness of impact surface: 70 ShA
- Weight: 11.5 g
- Compatible with gearbox: v.2, v.3
The cylinder head is made of duralumin EN AW 6012. On a CNC machining center. To seal the space between the cylinder head and the cylinder, 2 sealing rings are used. The first sealing ring has a slightly smaller diameter for easier fitting, and the second ring is larger for a perfect seal.
!! Cylinder head - CLASSIC NBU can only be combined with NBU nozzle and cylinder. !!
A thin layer of nickel is chemically applied to the surface of this cylinder head, which significantly increases the lifespan and slipperiness of the surface. Basic information:
- Hardness after plating 660-850 HV (58-63 HRc)
- Excellent corrosion resistance
- High abrasion resistance
- Inherent surface lubricity
- Glossy appearance
- Uniform layer
- Two sealing rings
- Extremely smooth surface thanks to quality nickel on the surface => easy nozzle movement
- Rounding for easier airflow into the nozzle
- Firm attachment of the impact surface
- Graduated impact surface that does not cause piston head breakage
- High durability
| Category: | Heads cylinder |
|---|---|
| Weight: | 0.02 kg |
| EAN: | 8592223000155 |
| Materiál: | dural (CNC obrábění) |
| Pro typ mechaboxu: | Univerzální |
| Průměr: | Bore Up |
