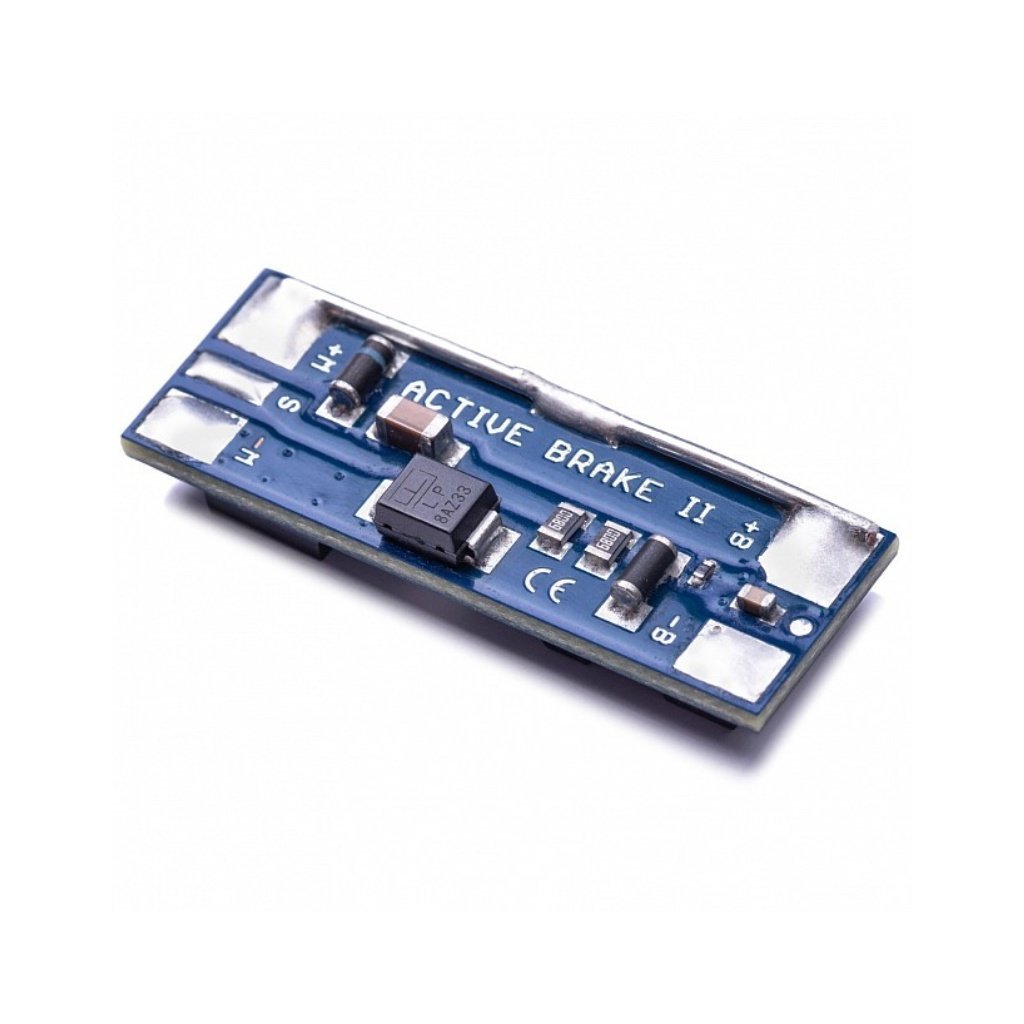

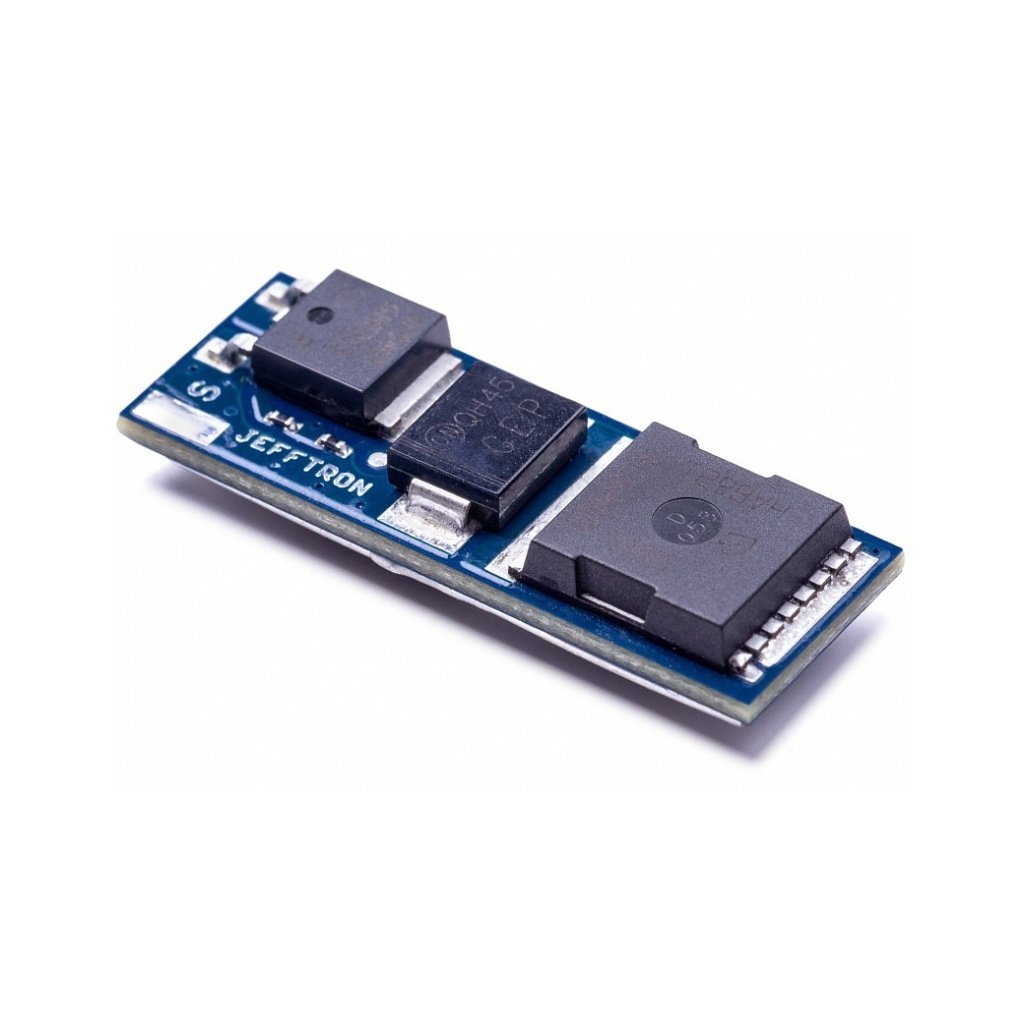

MOSFET with Active Motor Braking and Wiring is a professionally designed device for optimizing the operation of electric airsoft guns. Active motor braking ensures that when firing in semi mode, the piston is not partially cocked, which reduces stress on the spring and other internal components, and the nozzle more effectively seals the chamber. For high-rate-of-fire weapons, it eliminates the problem of unwanted multiple shots in semi mode. The MOSFET comes with pre-prepared wiring for faster installation, is coated with protective lacquer against moisture, and is designed for a wide range of commonly used batteries. Compared to the original guns cabling, it contributes to increasing the cadence and overall efficiency of the system.
Features
- MOSFET with active motor braking
- Designed for electric airsoft guns AEG

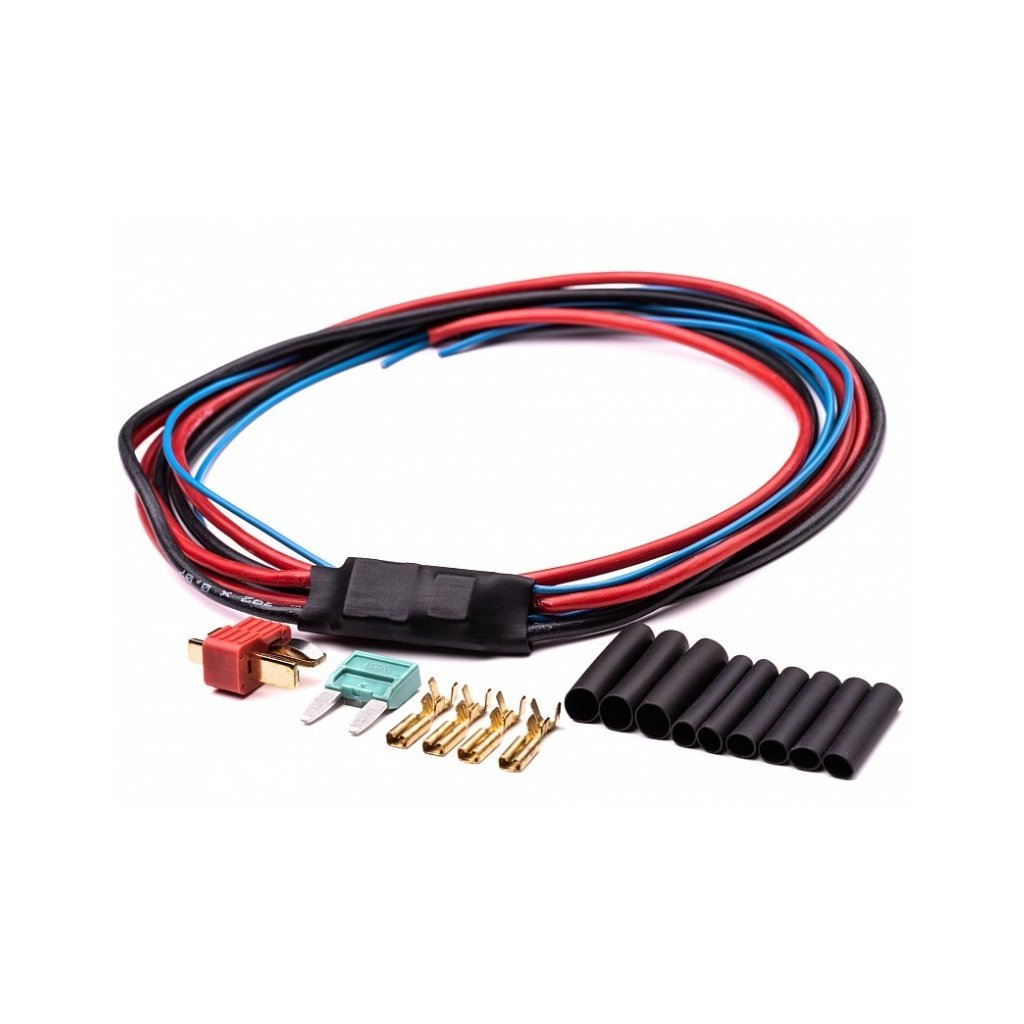

- Pre-wired for easy installation
- 4 MPPE wires 1.5 mm² (AWG16) and 2 signal wires 0.34 mm² (AWG22)
- Wire length 500 mm
- Sealed with moisture-resistant varnish
- Designed for springs up to M210
- Maximum current 150 A per shot
- Maximum current 50 A for burst fire up to 30 s
- Supports batteries up to 17 V
- Compatible with Ni-xx 8.4–12 V and Li-Pol 7.4–14.8 V
- Six-wire connection
- Dimensions 35 × 12 × 7 mm
- Trigger contacts do not burn out
- No current draw in standby mode
- Requires a fully functional standard gearbox mechanism
