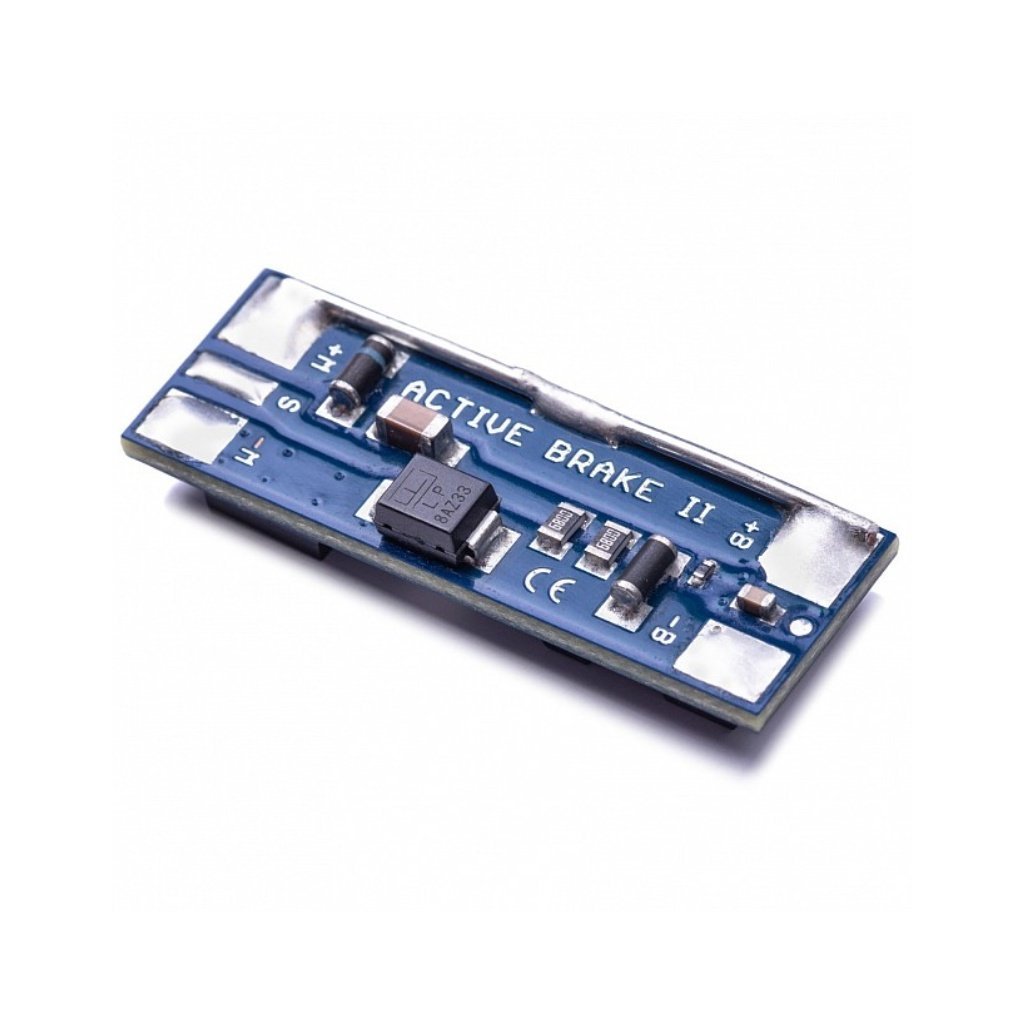

Active Brake II - JeffTron

MOSFET with Active Braking for AEG is designed to optimize the operation of electric airsoft guns and protect their internal components. Thanks to active motor braking, the piston does not partially retract when firing in semi-auto mode, which reduces stress on the spring, piston, and other parts, and the nozzle more effectively seals the chamber. For high-rate-of-fire weapons, it eliminates the problem of multiple shots when firing in semi-auto. The device also increases the rate of fire and efficiency of the guns and, compared to standard wiring, contributes to longer battery life. The MOSFET is designed as a standalone device without wiring and is primarily suitable for professional mount.

Features

• MOSFET with active motor braking
• Designed for electric airsoft guns AEG
• Prevents partial piston pull in semi mode
• Solves multiple shots in high-rate-of-fire guns
• Increases rate of fire and battery life
• Standalone device without wiring
• Max. cross-section of power cables 1.5 mm²
• Max. cross-section of signal cables 0.5 mm²
• Designed for springs up to M210
• Maximum current 150 A per shot
• Maximum current 50 A for bursts up to max. 30 s
• Supports batteries up to 17 V
• Compatible with Ni-xx 8.4–12 V and Li-Pol 7.4–14.8 V
• Active braking utilizing excess motor energy
• Highest braking effect with motors with neodymium magnets

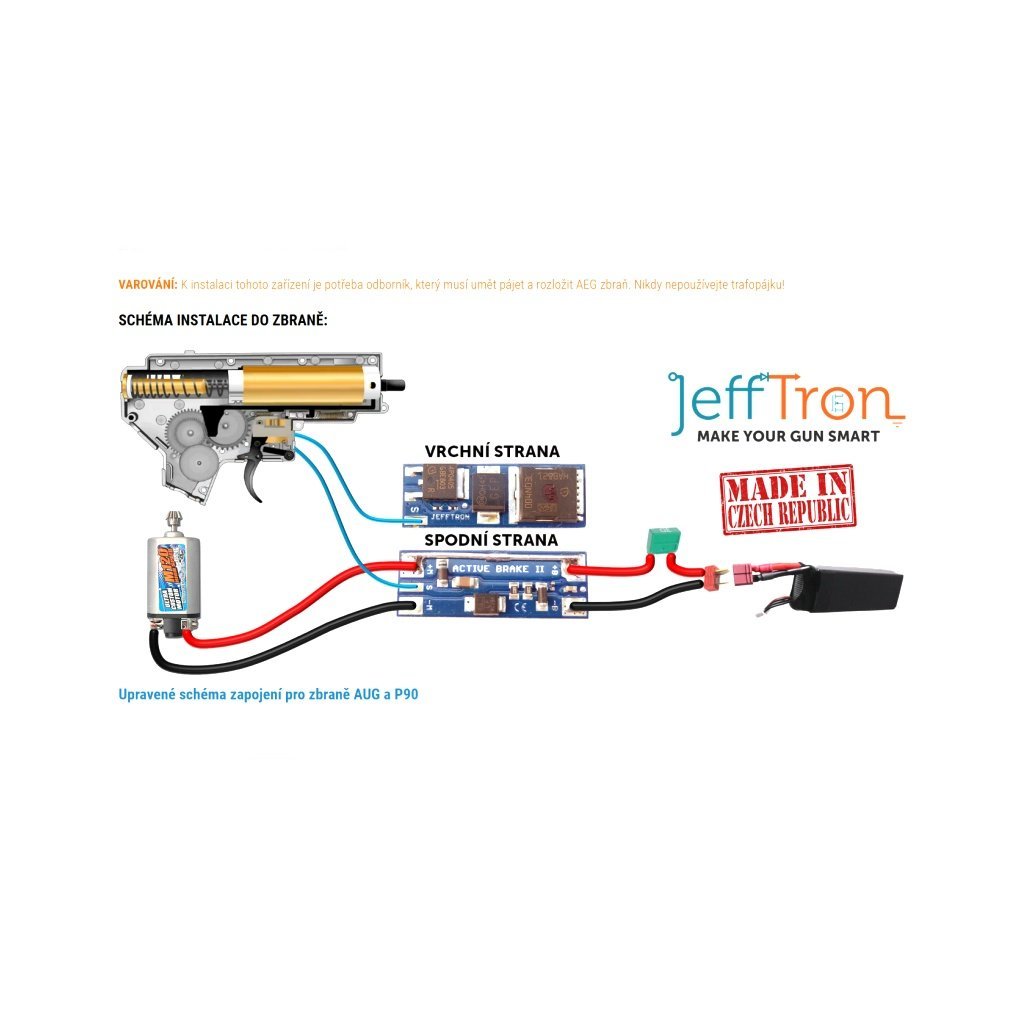

• Six-wire connection
• Dimensions 35 × 13 × 7 mm
• Trigger contacts do not burn out
• No current draw in standby mode
• The piston stops in a random position in AUTO mode
• Requires a fully functional standard gearbox mechanism
